Electron FP 32A Mixed Load ACCL- Automatic Changeover & Current Limiter

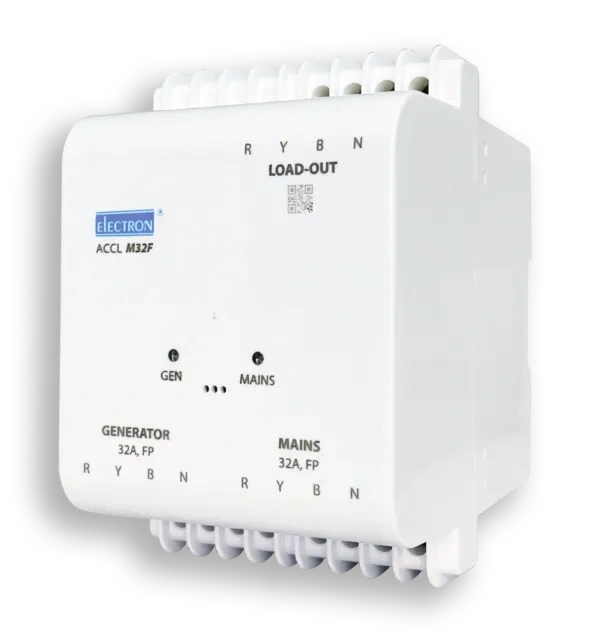

Space-Saving, Reliable 3-Phase Power Backup with the M32F Automatic Changeover & Current Limiter

Introducing the M32F, an ultra-compact 3-phase Automatic Changeover with Current Limiter (ACCL) engineered for seamless power transition in residential, commercial, and industrial applications. Its innovative interlocked contactor design achieves a remarkably narrow width of just 101mm (less than 6 standard MCBs), making it ideal for space-constrained distribution boards.

Encased in a sleek, pure white FR polycarbonate enclosure with custom-made terminals, the M32F offers both superior functionality and modern aesthetics. It ensures a reliable switchover between your main 3-phase supply and a generator during power outages, keeping your critical power and lighting loads operational.

The M32F provides flexible current limiting capabilities. DG limits can be pre-set at the factory based on your specific requirements or easily configured on-site, allowing for optimized generator power distribution and preventing overloads. Experience dependable 3-phase power backup in a remarkably compact and user-friendly package with the M32F.

Product Specification:

Model: M32F

Core Functionality: Automatic Changeover with Integrated Current Limiter (3-Phase)

Technology: Interlocked Dual Contactor Design

Design: Ultra-compact, DIN rail mountable (less than 6 MCBs wide)

Enclosure: Pure white FR Polycarbonate with custom-made terminals

Rated Loads:

• Mains (EB): 32A, FP (Full Power)
• Generator (DG): 32A, FP (Full Power)

Suitable Loads: Power and Lighting loads

Number of Poles: 4 (3P+N)

Rated Voltage: 415V (Line-to-Line) / 240V (Phase-to-Neutral), 50 Hz

Mains Rated Current (AC1): 32A

Mains Rated Current (AC3): 18A

Generator Trip Range (AC1): 1 - 32A (Factory set or on-site configurable)

Starting Voltage Range (Mains, P-N): 180 - 300V

Operating Voltage Range (Mains, P-N): 180 - 300V (310 - 520V Line-to-Line)

Operating Voltage Range (Gen, P-N): 170 - 250V

Generator Output On-delay: 4 - 10 seconds (randomized on boot-up)

Transfer Time: ? 1 second

Self-resetting Time (after tripping): 4 - 10 seconds

Under/over-voltage Protection (Mains): Optional

Under/over-voltage Protection (Gen): Yes, 170 - 270V

Utilisation Category: AC1 / AC7a / AC7b

Electrical Endurance (Operations): 60,000

Enclosure Material: Polycarbonate (Fire-retardant)

Mounting Type: DIN (35mm)

Terminal Capacity: 16 mm�

Dimensions (W x H x D): 101 x 150 x 124 mm

Weight: 1.1 KG

Conformity: IEC 60947-4 / IEC 60947-6-1

Protection Class: IP20

Ambient Temperature: -10�C � 65�C

Rated Insulation Voltage: 1.1 kV

Load Switching Device: Interlocked Dual Contactor

Short-circuit withstand capacity: 6kA

Optional On-Demand Features:

• Generator output lock-out
• On-site reconfiguration
