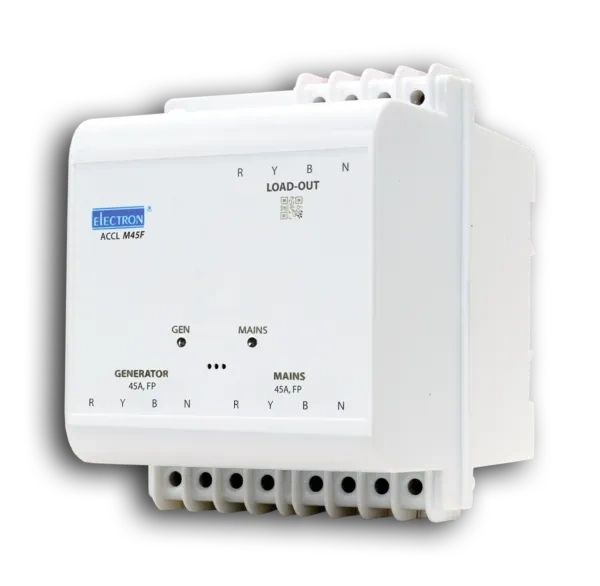

Electron FP 45A Mixed load ACCL- Automatic Changeover & Current Limiter

Alright, here's a product description and specification for the M45F Time-Tested 3 Phase ACCL, incorporating the details you provided:

Product Description:

Experience Unwavering 3-Phase Power Reliability with the Time-Tested M45F Automatic Changeover Switch

The M45F is a robust and dependable 3-phase Automatic Changeover Switch (ACCL) built upon a time-tested interlocked contactor design. Renowned for its superb performance track record, the M45F ensures complete safety and seamless transition between your main 3-phase power supply and a generator during outages.

Housed in a durable, pure white FR polycarbonate enclosure with meticulously crafted, custom-made terminals, the M45F offers both exceptional operational reliability and a clean, professional aesthetic. Designed for a wide range of lighting and power loads, this 45A ACCL provides peace of mind knowing your critical systems will remain powered without interruption. Trust in the proven performance and robust construction of the M45F for your 3-phase power backup needs.

Product Specification:

Model: M45F

Core Functionality: Automatic Changeover Switch (3-Phase)

Technology: Interlocked Dual Contactor Design

Key Feature: Time-tested design with a superb performance track record

Enclosure: Pure white FR Polycarbonate with custom-made terminals

Rated Loads:

• Mains (EB): 45A, FP (Full Power)
• Generator (DG): 45A, FP (Full Power)

Suitable Loads: Lighting and power loads

Number of Poles: 4 (3P+N)

Rated Voltage: 415V (Line-to-Line) / 240V (Phase-to-Neutral), 50 Hz

Mains Rated Current (AC1): 45A

Mains Rated Current (AC3): 25A

Generator Trip Range (AC1): 1 - 45A

Starting Voltage Range (Mains, P-N): 180 - 300V

Operating Voltage Range (Mains, P-N): 180 - 300V (310 - 520V Line-to-Line)

Operating Voltage Range (Gen, P-N): 170 - 250V

Generator Output On-delay: 4 - 10 seconds (randomized on boot-up)

Transfer Time: ? 1 second

Self-resetting Time (after tripping): 4 - 10 seconds

Under/over-voltage Protection (Mains): Optional

Under/over-voltage Protection (Gen): Yes, 170 - 270V

Utilisation Category: AC1 / AC7a / AC7b

Electrical Endurance (Operations): 60,000

Enclosure Material: Polycarbonate (Fire-retardant)

Mounting Type: DIN (35mm / 75 mm)

Terminal Capacity: 16 mm�

Dimensions (W x H x D): 122 x 157 x 148 mm

Weight: 1.54 KG

Conformity: IEC 60947-4 / IEC 60947-6-1

Protection Class: IP20

Ambient Temperature: -10�C � 65�C

Rated Insulation Voltage: 1.1 kV

Load Switching Device: Interlocked Dual Contactor

Short-circuit withstand capacity: 6kA

Optional On-Demand Features:

• Generator output lock-out
• On-site reconfiguration
