Havells

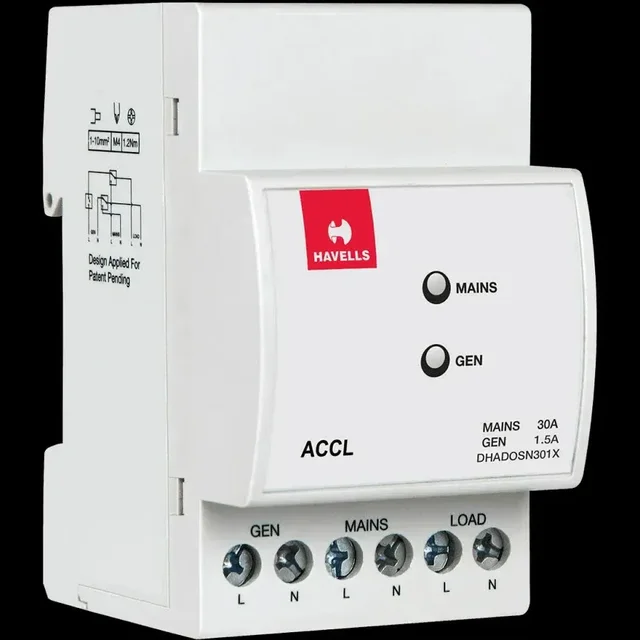

Havells 30A/2.5A SPN ACCL Automatic Source Changeover Switch | 500W Generator | Microcontroller Based | Without Generator Start/Stop
₹ 1,200 / Piece
₹ 2,168
45%
₹ 1,416 / Piece
Inclusive of Tax
Highlights
The Havells 30A/1.5A SPN ACCL Automatic Source Changeover Switch is a microcontroller-based automatic transfer device designed for single-phase power backup systems. Supporting a 30A mains supply and 1.5A (300W) generator, it automatically transfers power between utility and generator while incorporating intelligent current limiting. This model is supplied without Generator Start/Stop, making it ideal for manually operated generators.
Delivery Options
Get delivery at your doorstep
The Havells 30A/2.5A SPN ACCL Automatic Source Changeover Switch offers reliable automatic power transfer between the mains supply and a standby generator for uninterrupted operation during power failures. Featuring an advanced microcontroller-based design, the ACCL continuously monitors the utility supply and automatically transfers the load to the generator whenever a power outage occurs. Once the mains supply is restored, the device safely reconnects the load after a preset delay.
Designed for 30A mains capacity (6000W) and 2.5A generator capacity (500W), the built-in Current Limiter (ACCL) prevents generator overload by disconnecting excessive loads, ensuring safe and efficient operation. This version is supplied without Generator Start/Stop (W/O GSS), making it suitable for manually started generators while still providing fully automatic load transfer.
Its compact DIN rail mounting, LED status indications, and compliance with IEC 60947-6-1 make it an excellent choice for residential homes, apartments, offices, and other single-phase backup power applications.
Key Features
- High-Precision Microcontroller-Based Design
- Automatic Source Changeover Between Mains & Generator
- 30A Mains Rating (6000W)
- 2.5A Generator Rating (500W)
- Intelligent Current Limiter (ACCL)
- Without Generator Start/Stop
- LED Status Indicators
- Generator Overload Protection
- DIN Rail Mountable
- Low Power Consumption
- Maintenance-Free Operation
- IEC 60947-6-1 Compliant
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Havells |
| Product Type | Automatic Source Changeover with Current Limiter (ACCL) |
| Pole Configuration | SPN (1 Pole + Neutral) |
| Mains Rating | 30A (6000W) |
| Generator Rating | 2.5A (500W) |
| Technology | Microcontroller Based |
| Generator Start/Stop | Without Generator Start/Stop |
| Rated Voltage | 240V AC |
| Frequency | 50Hz |
| Transfer Time | 8–12 Seconds |
| Restoring Time | 0–2 Seconds |
| Mounting | 35mm DIN Rail |
| Protection Class | IP20 |
| Standard | IEC 60947-6-1 |
