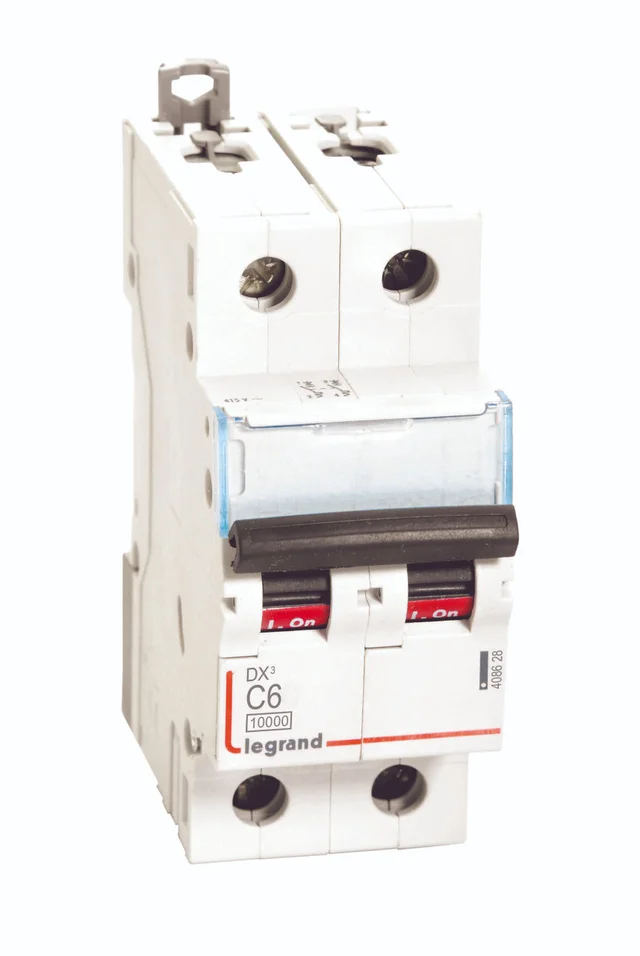

Legrand Double Pole MCBs (6A to 63A)
Legrand�?s Double-pole MCBs provide reliable and efficient protection for AC circuits, tailored for a wide range of applications. Designed to meet high safety and performance standards, these MCBs are suitable for residential, commercial, and industrial use.
Specifications:
-
Breaking Capacity: 10 kA, certified as per IS/IEC 60898-1:2002.
-
Nominal Ratings: Available for 6A, 10A, 16A, 20A, 25A, 32A, 40A and 63A.
-
Voltage Rating: Double pole, 240/410V AC.
-
Tripping Curve: C-Curve for general-purpose circuit protection.
-
Module Size: 17.5 mm (Double module).
-
Construction Features:
- Sliding bottom clamp for secure installation.
- Color-coded On/Off indication for easy identification.
- Integrated label holder for circuit labeling.
- Advanced air channels for better thermal management.
-
Safety Features:
- IP20-protected terminals with sliding shutters to prevent accidental contact.
- Biconnect lower terminals for flexible wiring.
-
Auxiliary Compatibility: Compatible with signal and control auxiliaries.
-
Current Per Pole: DC-80V per pole, 1kA.
Applications:
These MCBs are ideal for protecting circuits in lighting, appliances, and general electrical installations across homes and businesses.
