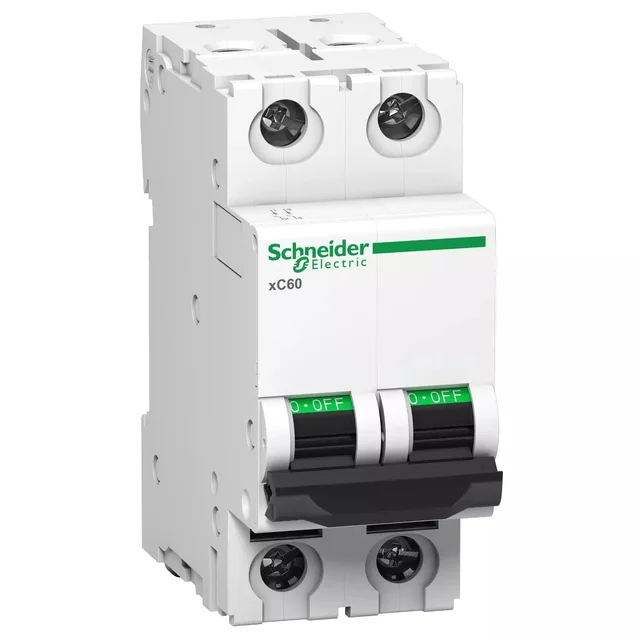

Schneider MCB Double Pole

AC Miniature Circuit Breakers - xC60 (C Curve, Double Pole)

The xC60 Double Pole Miniature Circuit Breakers (MCBs) are designed for advanced circuit protection, combining durability, efficiency, and user-friendly features. They ensure robust safety against overload and short-circuit faults while supporting both AC and DC applications.

Key Specifications

• Breaking Capacity:
  • 10kA as per IEC 60898 and IS/IEC 60898-1.
  • 15kA as per IEC 60947-2 (up to 40A).
• DC Compatibility: Operates reliably up to 60V per pole.

Performance Features

• System Optimization:
  • Cost-efficient cascading* for enhanced performance.
  • Advanced discrimination* for uninterrupted system continuity.
• Extended Lifespan: Rated with Energy Limitation Class 3 for a longer operational life.
• Fast Response: Equipped with a fast closure mechanism for reliable fault isolation.

Ease of Use

• Flexible Installation:
  • Biconnect terminals for quick setup.
  • Line-load reversible for easy configuration.
• Advanced Monitoring: Supports field-fittable auxiliaries for added protection and system insights.
• Safety Assurance: Positive Contact Indication provides clear disconnection status for maintenance and troubleshooting.

Available Ratings (C Curve)

The double-pole C curve variant is available in the following ratings:
6A, 10A, 16A, 20A, 25A, 32A, 40A, and 63A.

Why Choose Acti 9 xC60?

Certified with the Green Premium label, these MCBs meet eco-friendly standards, ensuring both safety and sustainability.
