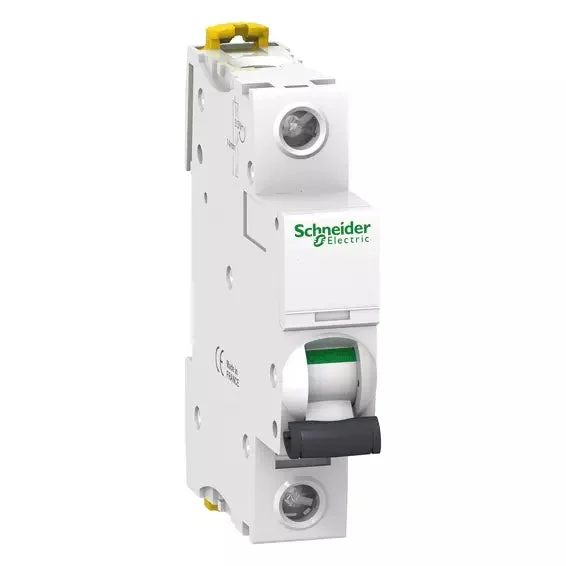

Schneider MCB Single Pole

Acti 9 AC Miniature Circuit Breakers - xC60

The Acti 9 xC60 Miniature Circuit Breakers (MCBs) are designed for superior circuit protection, offering robust performance against overload and short-circuit faults. Engineered to meet global standards, these MCBs are ideal for both AC and DC applications, ensuring safety and reliability in residential, commercial, and industrial installations.

Key Features

• Breaking Capacity:
  • As per IEC 60898 and IS/IEC 60898-1: Icn = 10kA
  • As per IEC 60947-2: Icn = 15kA (up to 40A)
• DC Application: Suitable for use up to 60V per pole.
• Optimized Performance: Higher system efficiency with cost-effective cascading*.
• Enhanced System Continuity: Achieved through advanced discrimination*.
• Extended Lifespan: Energy Limitation Class 3 with a fast closure mechanism for higher installation life.
• Ease of Installation:
  • Biconnect terminals for flexibility.
  • Line-load reversible design for hassle-free setup.
• Advanced Protection & Monitoring: Supports field-fittable auxiliaries.
• Positive Contact Indication: Ensures visual confirmation of disconnection for safety assurance.

Available Ratings (C Curve)

The xC60 series offers a range of current ratings for diverse applications:
6A, 10A, 16A, 20A, 25A, 32A, 40A, and 63A.

Sustainability

This product is Green Premium certified, reflecting its compliance with eco-friendly standards.
