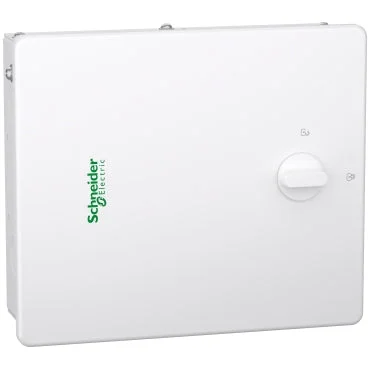

Schneider Electric Acti 9 SPN Distribution Boards (DB) � 6, 8, 12, and 18 Ways
Schneider Electric�s Acti 9 SPN Distribution Boards (DB) provide robust and safe solutions for residential, commercial, and industrial applications, ensuring proper distribution of electrical power. These consumer units are designed to offer maximum protection against electric shocks and fire risks caused by earth leakage currents, with various sizes and configurations to suit a wide range of installations.
Key Features:
-
Range of Configurations:
-
6 Ways (A9HSND06): Ideal for smaller installations with up to 6 circuits.
-
8 Ways (A9HSND08): Suitable for moderate installations with up to 8 circuits.
-
12 Ways (A9HSND12): For medium to large setups, offering space for 12 circuits.
-
18 Ways (A9HSND18): Designed for larger installations, providing 18 circuits for diverse electrical needs.
-
Enclosure:
-
Material: Made from durable galvanized steel, ensuring robust protection.
-
Type: Double door metal enclosure for ease of access and maintenance.
-
Protection Ratings:
-
IP43: Dust and water protection for reliable performance in various environments.
-
IK09: High impact protection for added durability.
-
Mounting Options:
- Suitable for both flush and surface mounting, allowing flexibility in installation.
-
Modules:
- Each unit supports 18mm modules, accommodating a range of protection devices including Miniature Circuit Breakers (MCBs), Residual Current Circuit Breakers (RCCBs), and Residual Current Circuit Breakers with Overcurrent Protection (RCBOs).
-
Door:
-
Reversible door opening to adapt to different installation requirements.
-
Additional Equipment:
- Includes removable gland plates, removable centre plates, grounding bar, neutral bar, busbar, and neutral cable for ease of installation and flexibility.
Product Applications:
-
Residential Installations: Protects circuits in homes, providing safety from electric shocks and earth leakage currents.
-
Commercial Installations: Suitable for office buildings, shops, and other commercial spaces requiring reliable power distribution.
-
Industrial Installations: Perfect for large-scale industrial applications that need heavy-duty electrical protection and distribution.
-
High-Risk Environments: Ideal for environments such as swimming pools, areas with fluorescent lighting, and regions with high electrical pollution.
Technical Specifications:
-
External Dimensions (Height x Width x Depth):
-
6 Ways: 242mm x 246mm x 95.4mm
-
8 Ways: 242mm x 282mm x 95.4mm
-
12 Ways: 242mm x 354mm x 95.4mm
-
18 Ways: 242mm x 462mm x 95.4mm
-
Protection Device Types:
- Outgoers: MCB (1P)
- Main incomer: Isolator (2P), MCB (2P), RCCB (2P), RCBO (2P)
Environmental Sustainability:
- Schneider Electric focuses on sustainability with packaging made from recycled cardboard, and the units are EU RoHS and REACh compliant. The company follows its �Use Better, Use Longer, Use Again� initiative to minimize environmental impact, aiming for Net Zero by 2050.
Certifications:
-
CPRI and ERDA certified, ensuring adherence to high safety and quality standards.
Unit Packaging:
-
Weight:
-
6 Ways: 3.51 kg
-
8 Ways: 3.24 kg
-
12 Ways: 3.9 kg
-
18 Ways: 5.2 kg
-
Packaging Dimensions:
-
6 Ways: 11.2 cm x 25.4 cm x 24.8 cm
-
8 Ways: 14.6 cm x 28.2 cm x 31.4 cm
-
12 Ways: 14.2 cm x 28.2 cm x 39.2 cm
-
18 Ways: 14.4 cm x 28.2 cm x 50.2 cm
These Acti 9 SPN Distribution Boards are perfect for those looking for reliable, compliant, and high-quality protection and distribution of electrical power. Whether you're outfitting a small home or a large industrial facility, Schneider Electric's versatile range meets all electrical distribution needs.
